SUBARU EVO9 EVOX NISSAN FA20 FA24 N20 N54 N55 TURBO FLANGE TURBO OIL WATER LINE KIT TURBO BNAJO BOLT KIT
We offer performance turbo parts , oil water line kit , gasket and flange to meet your need
Application
- Garrett GEN2 GTX3076R
- 856801-5027S / 851154-5001S / 856801-5026S /856801-5025S / 856801-5039S / 856801-5038S /856801-5037S
- It can't fit GEN 1 GTX3076R
Product Situation:
- Brand New
- 30% lighter than genuine cast wheel.
- Offer extra 30% airflow than stock cast wheel.
- Maximum boost 5 bar / 70 Psi

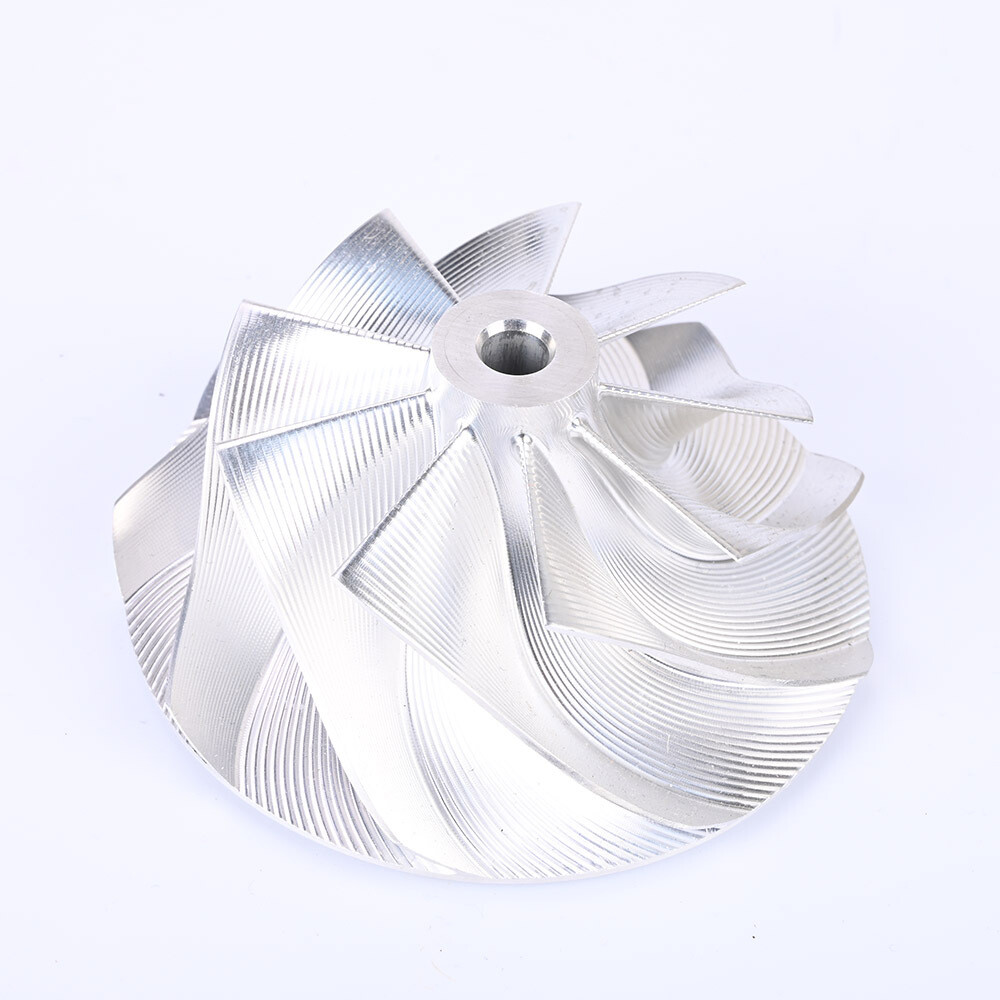

Wheel Size:
- Nose Dia : 18.85 mm
- Inducer Dia : 58.23 mm
- Exducer Dia : 76.43 mm
- Extend Tapered Tip Exducer Dia : 81.78 mm
- Tip Height : 5.64 mm
- Super Back Height : 2.18 mm
- Overall Height : 35.6 mm
- Bore Size : 6.00 mm
- Blade : 9+0
- Trailing angle : 45
- Bore Type : Through
- Rotation : Forward
