SUBARU EVO9 EVOX NISSAN FA20 FA24 N20 N54 N55 TURBO FLANGE TURBO OIL WATER LINE KIT TURBO BNAJO BOLT KIT
We offer performance turbo parts , oil water line kit , gasket and flange to meet your need
Situation :
-Brand New -Balanced By SCHENCK MBRS 110 and Ready to competition
-Maximum boost 5 bar / 70 Psi
Application :
Replaces OE CW P/N: 174513

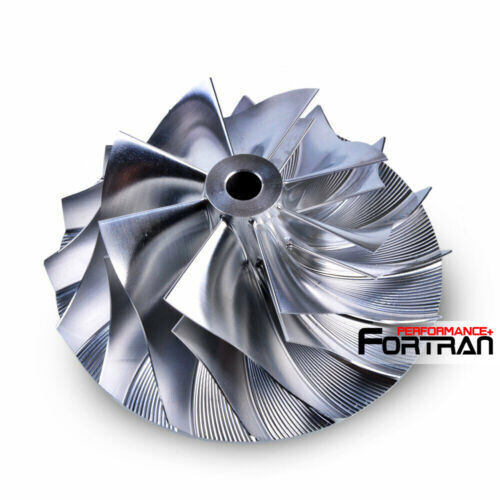

Wheel Spec :
-Nose Dia: 24.30 mm
-Inducer Dia. : 80.30 mm
-Exducer Dia. : 111.10 mm
-Extend Tapered Tip Exducer Dia. : 116.65 mm
-Tip Height: 9.55 mm
-Super Back Height: 7.55 mm
-Overall Height: 60.40 mm
-Bore Size : 10.00 mm (Through type)
-Racing or Non-racing : Racing
-STD or customs size : STD
-Blade : 8+8
-Trailing angle : 60
-Fits OE Comp Hsg : OE
-Cutback : 0.0
-Rotation : Forward
Material:
- Forged Aluminum
