- Mitsubishi TD04 / TD04L / TD04H / TD04HL Turbo With Super Back Wheel such as TD04-10T, TD04-12T, TD04-13T, TD04-14T, TD04-15T, TD04-16T, TD04-18T, TD04-19T Turbo with Super Back Wheel)
- TD04-10T, 12T: Delica/L200 4D56T
- TD04L-13T: SUBARU WRX
- TD04L-12T, 14T: VOLVO S40 / V40
- TD04HL-15T: SAAB 9-5, 9000 Aero
- TD04HL-16T, 18T, 19T: VOLVO S70
This Kit can NOT fit TD04-9B, TD04-11B, TD04-9G, TD04-11G, TD04-13G, TD04-15G …turbo with flat back wheel

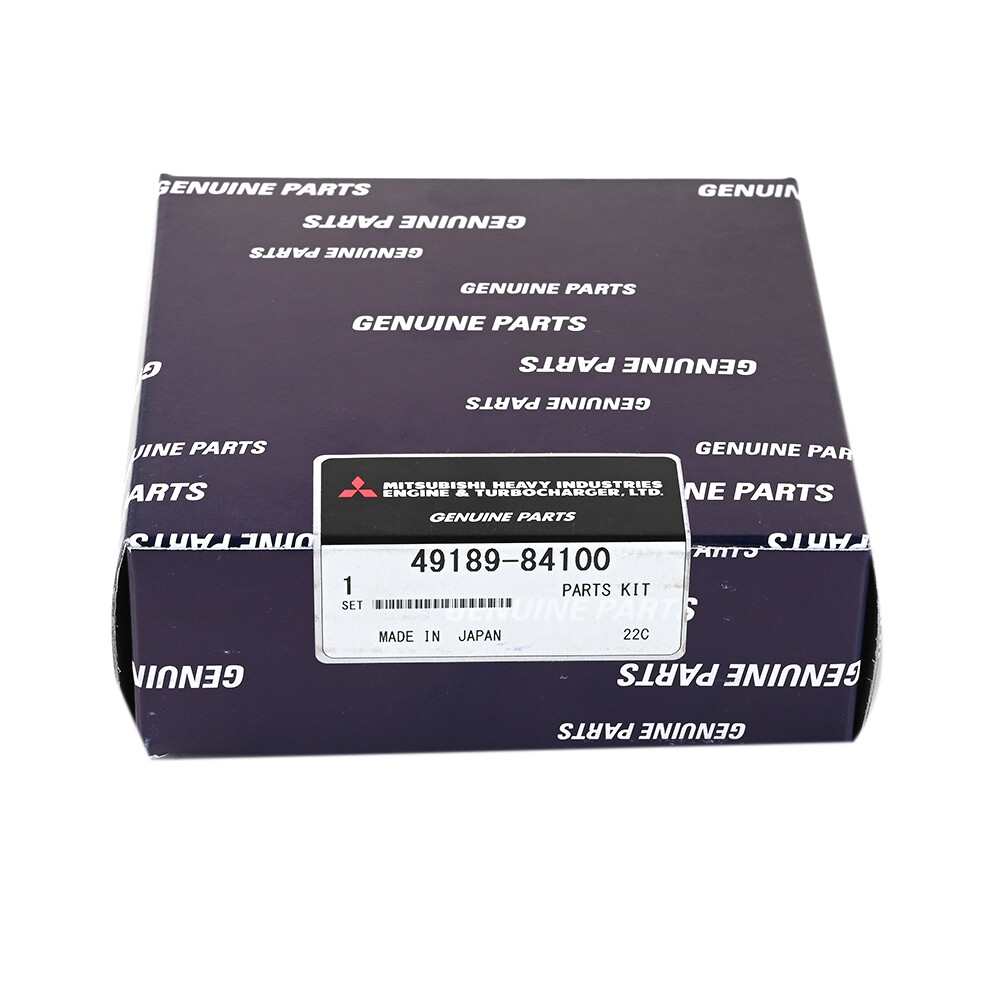

MHI Part Number：49189-84100
Description：
- 49135-42200 : 1 x Turbine Shaft Nut
- 49177-22200 : 1 x O-Ring Insert side
- 49170-23201 : 1 x Ring Snap
- 49183-19300 : 1 x Heart Plate (Heart Shield)
- 34336-04100 : 1 x Gasket Oil Drain Pipe
- 49170-14020 : 1 x Bolt
- 49173-22200 : 1 x Oil Deflector
- 49177-21601 : 1 x Thrust Bearing
- 49177-21220 : 2 x Journal Bearing
- 05634-00620 : 1 x Nut (For C-Clamp bolt)
- 49183-22300 : 2 x Ring (For fix Journal Bearing)
- 49177-22100 : 1 O-Ring (CHRA to Cover)
- 49172-23200 : 1 x Piston Ring (Compressor Side)
- 49177-23100 : 1 x Piston Ring (Turbine Side)
- 49183-42400 : 1 x Thrust Ring
- 49183-xxxxx : 1 x Thrust Sheeve (Super Back)
- 49173-xxxxx : 1 x Insert (Super Back)
